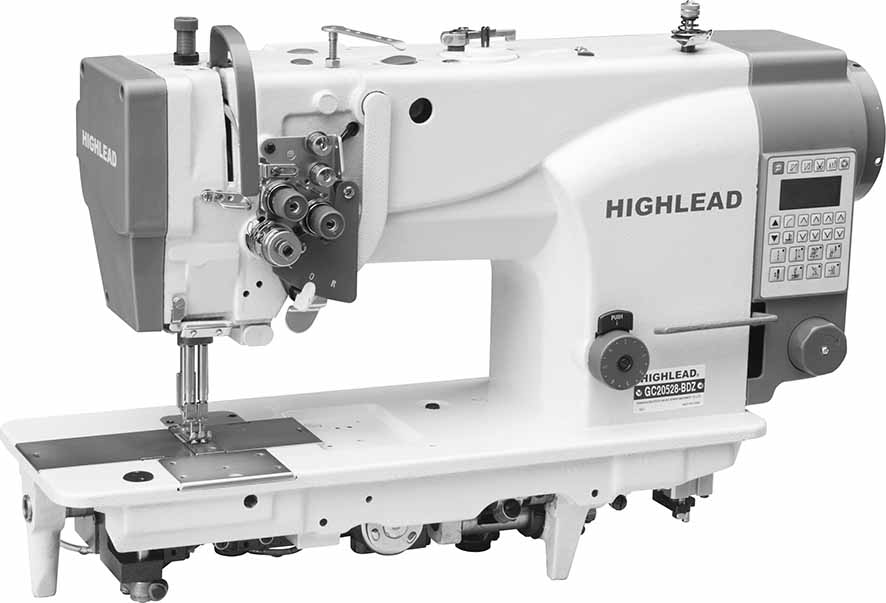

    Products >Two needle direct drive needle feed lockstitcher with split needle bar and auto thread trimmer

    Function Introduction

    Sewing speed:3000~3500R.M.P
    Direct servo motor drive,split needle bar,two typies for thin material and heavy material
    Automatic trimmer,pneumatic tension releaser,LED light,E-handwheel,pneumatic presser foot lifter
    Suitable for coat,denim garment,cloth ornaments,beding, tent bags, decorative seams, etc.

    This series is new product of Highlead brand two needle lockstitch sewing machines.With Highlead unique modern style appearance de sign,it is equipped with mini built-in powerful servo motor for direct drive.which features low noise,low vibration,outstanding energy saving,quick start,quick stop and easy installation.The rational needle bar disengagement mechanism assures smooth engagement and disengagement of the needle bars,thus two needle bars can work together or one needle bar works while the other needle bar stops for corner sewing by built-in operating panel,electronic dial,LED light,pneumatic tension release and pneumatic presser foot lifter,it greatly reduces labor intensity.It is available for stitching garment,bag,tent,umbrella,etc.

    Product Parameters

    Model

    Max.sewing speed

    Stitch length

    Needle bar stroke

    Presser foot lift

    Needle size

    Satety clutch device

    GC20528-MDZA

    3500 r.pm.

    0-5 mm

    33.4 mm

    By hand  7mn     By air  17mn

    DPX5 11''-14''

    GC20528-BDZA

    3000 r.p.m.

    0-7 mm

    33.4 mm

    By hand 7mn    By air 17 mm

    DPX5 18''-22''



    Model

    Auto trimmer

    Auto lubrication

    Electronic dial

    Auto backtacking

    Working space

    Motor

    GC20528-MDZA

    300x118 mm

    220V750W Servo motor

    GC20528-BDZA

    300x118mn

    220V750W Servo motor



    Needle gauge  standard   6.4 mm special 3.2 4.8 9.5 mm
